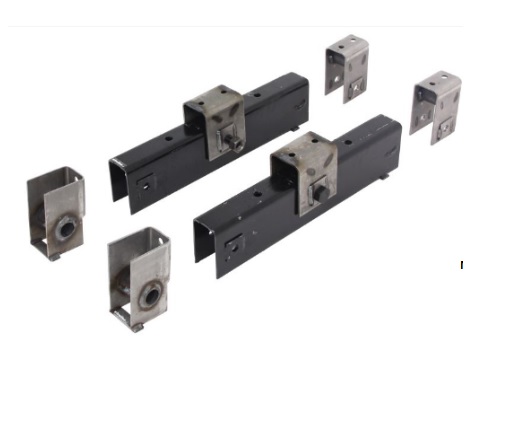

- Attaches 4 leaf springs (sold separately) to your trailer frame
- Use table below to determine hanger location
- Includes:
- (2) 5-1/4" Tall front hangers with 3/4" bolt holes (28-74-2)
- (2) 4-1/2" Tall center hangers with 1" bolt holes (29-42-2)
- (2) 4-1/2" Tall rear hangers (30-61-1)
- (2) 24-5/8" Long straight equalizers (13-141-3)
- Allows for 48-1/2" between axles
- 1" Diameter center hole for mounting to hanger
- 3/4" Diameter side hole for attaching to spring
- (4) 4-1/2" Long x 3/4" diameter spring-eye bolts (7-264)
- (4) 3/4" Diameter locknuts (6-113)
- (2) 5-1/4" Long x 1" diameter equalizer bolts (7-169)
- (2) 1" Diameter locknuts (6-112)
- Designed for use on trailers with tandem, 10,000-lb, general-duty Dexter axles
- Does not include components for mounting axle to springs
 |
