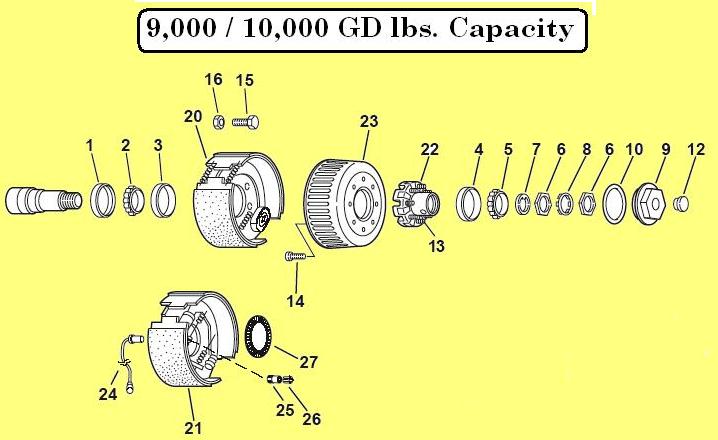

| Part # |
Description |
Item # |
Dexter # |
| 27-448-2 |
LH Complete Electric Brake Assembly |
20 |
K23-450 |
| 27-449-2 |
RH Complete Electric Brake Assembly |
20 |
K23-451 |
| 27-468-1-F |
LH Complete Hydraulic Brake Assembly (ABS Optional) |
21 |
023-410-00 |
| 27-469-1-F |
RH Complete Hydraulic Brake Assembly (ABS Optional) |
21 |
023-411-00 |
| 27-359-1 |
Oil Seal (Dimensions are 2.875 x 3.88 x .50) |
1 |
010-051-00 |
| 27-338 |
387A Inner Bearing (Inside diameter 2.25”) |
2 |
031-019-02 |
| 27-339 |
382A Inner Race |
3 |
031-019-01 |
| 27-327 |
25520 Outer Race |
4 |
031-030-11 |
| 27-326 |
25580 Outer Bearing (Inside diameter 1.75”) |
5 |
031-030-12 |
| Bearing Kit |
See-- Bearing Kits--Page To Order |
|
|
| 27-064-1 |
Spindle Nut ( 2 required ) |
6 |
006-096-00 |
| 27-063-1 |
Spindle Washer |
7 |
005-070-00 |
| 27-065-1 |
Tang Washer |
8 |
005-071-00 |
| 27-374-1 |
Oil Cap before 09' |
9 |
021-036-00 |
| 27-376 |
O-Ring |
10 |
010-050-00 |
| 27-377 |
Oil Cap Plug |
12 |
046-032-00 |
| 21-88 |
Oil Cap , O-Ring, Oil Cap Plug ( #9, #10, #12 ) 09-PRESENT |
|
21-88 |
| 27-388 |
5/8”-18 Wheel Stud |
13 |
007-115-00 |
| 7-245 |
Drum Mounting Screw MTG BOLT FOR 9-44-1 DRM, 1/2"-13 x 1 1/2" SHCS |
14 |
007-245-00 |
| 27-062-7 |
Brake Mounting Bolt |
15 |
007-116-00 |
| 27-062-1 |
Brake Mounting Nut |
16 |
006-017-00 |
| 27-066 |
Lock Washer |
|
005-008-00 |
| 27-314-1-I |
Hub - Oil w/Races & Studs |
22 |
008-288-03 |
| 27-315-3 |
Drum - Machined |
23 |
009-044-01 |
| 27-315-3 ABS |
Drum - ABS Ready |
n/s |
009-044-03 |
| 27-314-1-B |
Hub & Drum - Oil w/Races and Studs |
n/s |
008-288-05 |
| 27-032-2 |
5/8”-18 Cone Nut |
18 |
006-109-00 |
| |
(90 degrees - used with clamp ring #19, 200 lbs. torque) |
|
|
| 9-123-1 |
Brake Drum After 2013-Current |
|
009-123-01 |
| 27-557 |
Clamp Ring |
19 |
033-052-01 |
| 27-032-1 |
5/8”-18 Flange Nut |
n/s |
006-058-00 |
| |
(no clamp ring needed, 300 lbs. torque) |
|
|
| K71-367-00 |
Spindle Nut Kit for 1 End |
n/s |
K71-367-00 |
| 22-491 |
ABS Sensor, straight |
24 |
097-004-00 |
| 22-495 |
ABS Sensor Block |
25 |
024-204-00 024-204-00 |
| 22-492 |
ABS Sensor Clip |
26 |
097-002-00 |
| 22-499 |
ABS Tone Ring |
27 |
024-203-00024-203-00 |
VERIFY HUB INFORMATION FOR 10K General Duty
CLICK ON LINK
|
