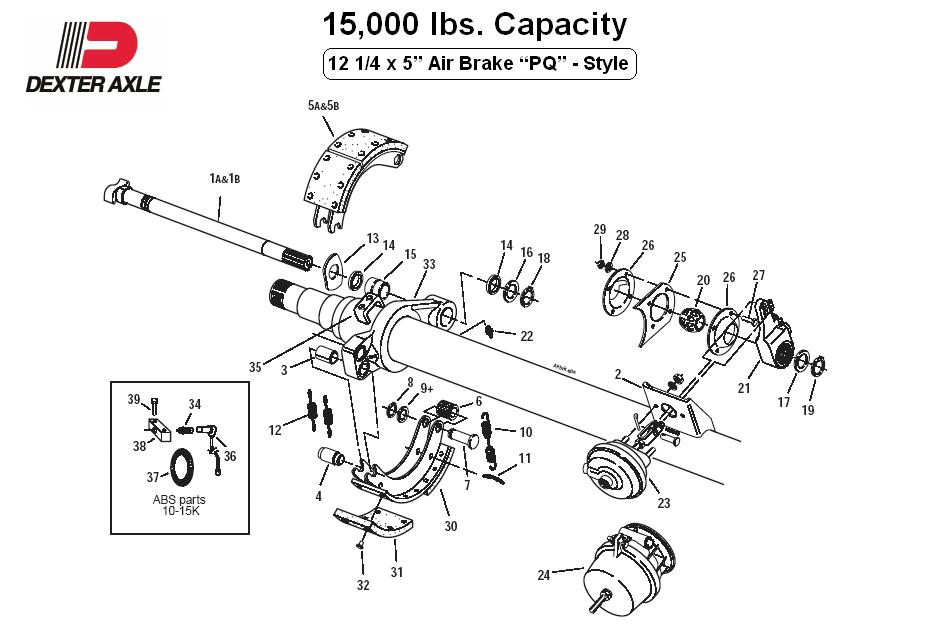

| Part # |
Description |
Item # |
Dexter # |
| 27-966 |
LH Camshaft |
1a |
034-188-xx |
| 27-966-1 |
RH Camshaft |
1a |
034-189-xx |
| 27-980 |
Air Chamber Bracket |
2 |
034-048-00 |
| |
Bushing - Spider Anchor Pin |
3 |
014-068-00 |
| |
Anchor Pin |
4 |
056-017-00 |
| |
|
|
|
| 27-991-4 |
Shoe & Lining Assembly |
5 |
040-322-01 |
| |
Shoe & Roller Assembly RH |
5a |
040-322-03 |
| |
Shoe & Roller Assembly LH |
5b |
040-322-02 |
| |
Roller |
6 |
014-057-00 |
| |
Roller Pin |
7 |
056-010-00 |
| |
Roller Pin Retainer |
8 |
069-018-00 |
| |
|
|
|
| 27-500-2 |
Retractor Spring |
10 |
046-092-00 |
| 99-27-100 |
Retainer Pin |
11 |
056-018-00 |
| 27-985 |
Shoe Keeper |
12 |
046-097-00 |
| 27-975-3 |
D-Washer |
13 |
005-074-00 |
| 27-975-4 |
Grease Seal |
14 |
010-052-00 |
| 27-975-5 |
Camshaft Bushing |
15 |
014-056-00 |
| 27-975 |
Washer - Camshaft Spider End |
16 |
005-075-00 |
| |
Camshaft Washer - 28 Spline |
17 |
005-134-00 |
| |
|
|
|
| 27-975-1 |
Retainer - Camshaft |
18 |
069-020-00 |
| 27-975-2 |
Retainer - Camshaft End |
19 |
069-078-00 |
| 27-975-6 |
Camshaft Support Bushing |
20 |
014-058-00 |
| 27-969-2 |
Automatic Slack Adjuster - 28 Spline |
21 |
055-040-xx |
| 27-969-3 |
Manual Slack Adjuster - 28 Spline |
21 |
055-039-xx |
| 27-021-4 |
Grease Fitting |
22 |
061-006-00 |
| |
|
|
|
| |
Air Chamber w/Hardware |
23 |
034-059-00 |
| |
Spring Brake |
24 |
034-060-00 |
| |
Plate - Camshaft Support Bracket |
25 |
034-031-00 |
| |
Plate, Bushing Retainer |
26 |
034-032-00 |
| |
Bolt - Retainer Plate |
27 |
007-139-00 |
| |
Lock Washer |
28 |
005-079-00 |
| |
Nut |
29 |
006-099-00 |
| |
Brake Block Cam |
30 |
041-052-02 |
| |
Brake Block Anchor |
31 |
041-052-01 |
| |
Rivet |
32 |
022-018-00 |
| |
Brake Spider |
33 |
036-113-02 |
| |
|
|
|
| 22-492 |
ABS Sensor Retaining Clip |
34 |
097-002-00 |
| 22-494-3 |
ABS Lower Sensor Mounting Block |
35 |
024-101-00 |
| 22-490 |
ABS Sensor (90 degree) |
36 |
097-003-00 |
| 22-499 |
ABS Tone Ring in Drum |
37 |
024-203-00 |
| 22-494-1 |
ABS Upper Sensor Mounting Block |
38 |
024-101-01 |
| 22-494-2 |
Mounting Screw Upper Block |
39 |
007-237-00 |
| |
|
|
|
| 27-989-2 |
Brake Shoe Repair Kit |
Not Shown |
K71-460-00 |
| Kit contains: |
|
|
|
| |
(2) Item #3, (2) Item #4, (1) Item #6, |
|
|
| |
(2) Item #7, (2) Item #8 (2) Item #9, |
|
|
| |
(1) Item #10, (2) Item #11, (2) Item # 12, |
|
|
| |
(1) Instruction Sheet |
|
|
| 27-991 |
Brake Block Kit |
Not Shown |
K71-152-00 |
| |
Kit contains: |
|
|
| |
(2) Item #31, (2) Item #30, (24) Item #32 |
|
|
|
Note: All prices in US Dollars
|
|
