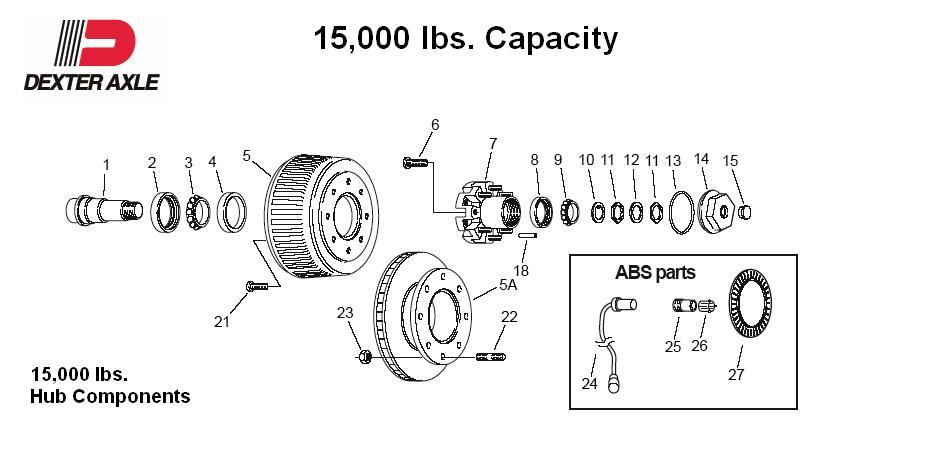

| Part # |
Description |
Item # |
Dexter # |
| 27-358 |
Unitized Oil Seal - disc or drum |
2 |
010-056-00 |
| |
Seal (Dimensions are 3.125 x 4.506 x .605) |
|
|
| 27-342 |
3984 Inner Bearing (Inside diameter 2.625”) |
3 |
031-020-02 |
| 27-343 |
3920 Inner Race |
4 |
031-020-01 |
| 27-315-2 |
Brake Drum |
5 |
009-028-01 |
| 27-315-2 ABS |
Brake Drum - ABS |
5 |
009-028-05 |
| |
RH Wheel Mounting Stud 7-132 |
6 |
007-013-01 |
| |
LH Wheel Mounting Stud 7-132 |
6 |
007-013-02 |
| OBSOLETE |
RH Hub See New Style Replacement Below
|
7 |
008-217-05 |
| OBSOLETE |
LH Hub See New Style Replacement Below |
7 |
008-217-25 |
| 27-345 |
28622 Outer Race |
8 |
031-021-01 |
| 27-344 |
28682 Outer Bearing (Inside diameter 2.25”) |
9 |
031-021-02 |
| 27-063 |
Spindle Washer |
10 |
005-060-00 |
| 27-064 |
Spindle Nut |
11 |
006-084-00 |
| 27-065 |
Tang Washer |
12 |
005-059-00 |
| 55-27095 |
Oil Cap, O-Ring & Plug (Items 13,14,& 15) |
|
|
| 27-376 |
Oil Cap O-Ring |
13 |
010-050-00 |
| 27-374-1 |
Oil Cap |
14 |
021-036-00 |
| 27-377 |
Oil Cap Plug |
15 |
046-032-00 |
| 27-067 |
RH Inner Nut |
17a |
006-069-01 |
| 27-068 |
LH Inner Nut |
17a |
006-069-02 |
| 27-069 |
RH Outer Nut |
17b |
006-070-01 |
| 27-070 |
LH Outer Nut |
17b |
006-070-02 |
| |
|
|
|
| 27-315-1 |
Drum Mounting Screw |
21 |
007-244-00 |
| 27-572 |
Rotor Mounting Stud - Disc Brake |
22 |
025-014-00 |
| 22-495 |
ABS Sensor Block |
25 |
024-204-00 024-204-00 |
| 22-492 |
ABS Sensor Clip |
26 |
097-002-00 |
| 22-499 |
ABS Tone Ring |
27 |
024-203-00024-203-00 |
| |
|
| |
New Style Hubs 8-275 Bolt Pattern
|
| Part No. |
Description |
| 27-315-2 | Uses 009-028-01 Brake Drum
| | 8-401-5UC1 |
OIL HUB KIT 8-401-5 BRGS/SEAL/CAP/NUTS 8-275 Bolt Pattern |
| |
COMPLETE HUB ASSEMBLY (BRAKE DRUM NOT INCLUDED) |
| 8-401-5 |
HUB ONLY
8-275 Bolt Pattern |
| 7-244 |
DRUM MOUNTING BOLT |
| 3984 |
INNER BEARING |
| 28682 |
OUTER BEARING |
| 3920 |
INNER RACE |
| 28622 |
OUTER RACE |
| 10-56 |
UNITIZED OIL SEAL, (4.50” O.D., 3.125” I.D.) |
| RG04-270 |
OIL CAP KIT (21-36 cAP, 10-50 O-RING, 46-32 PLUG) |
| 7-194 |
DRIVE-IN STUD, STD LENGTH, 22MM X 1.5, 3.94” LONG |
| 6-118 |
WHEEL NUT, SWIVEL-FLANGE, 22MM, 1-5/16” OD HEX |
|
Note: All prices in US Dollars
|
|
