Hydrastar - 1600 PSI, Carlisle Hydrastar-1600 Elec/Hydraulic - disc brake Free Delivery
Click to enlarge image(s)
Hydrastar - 1600 PSI, Carlisle Hydrastar-1600 Elec/Hydraulic - Brake Actuator
(For Disc Brakes Only) Free Delivery

Newly updated Generation 7 HydraStar actuator offers:
Faster response for reduced stopping distance
Simplified wiring - only 4 wires
Draws power only when brakes are applied - no need for ory switch
Smaller footprint requires less space for easier installation
Compare these HydraStar advantages:
Sealed unit - weather tight
Does not exceed tow vehicle manufacturers' wiring amp rating
Unit mounted bleeder fitting simplifies brake bleeding

Vastly superior to surge brakes
Eliminates the feel of being pushed by trailer, problems with backing a trailer uphill and brake drag
Easily replaces surge brakes on trailer
Meets all DOT regulations and complies with CFR-393 federal braking requirements...surge brakes are illegal in many states
Dimensions: 11.8" long x 3" wide x 7.3" high, shipping weight 12 lbs.

Specifications:
• In cab controller required –
See instruction manual or our website for a list of approved controllers
• 12 volt DC operation –
• Electrical connections –
Recommended minimum wire; 12-gauge for splicing into power,
ground and breakaway; 16-gauge for controller output
• Hydraulic brakes –
For use with DOT 3 or DOT 4 brake fluid systems

• Trailer-mounted and self-contained weather tight enclosure
• Dimensions –
11.8" long x 3" wide x 7.3" high, shipping weight 12 lbs.
• Accessories –
– Breakaway battery kit (20015)
Automatically applies the trailer brakes in the event the
trailer and towing vehicle become separated
– 1/4" line adapter (HBA-BLC)
Allows conversion to 1/4" brake line
1/4" brake lines improve braking performance on trailers
over 20' and/or with triple axles.

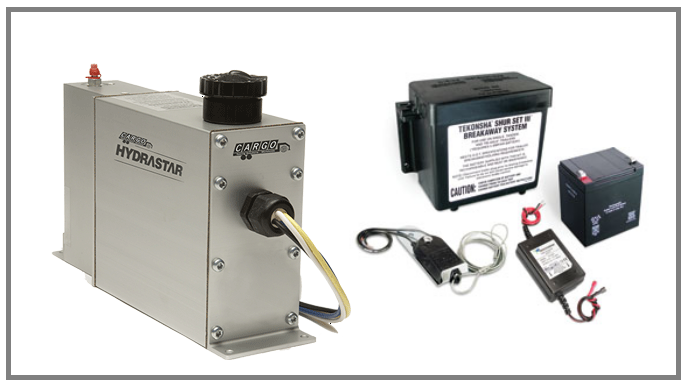

We Include the Tekonsha 20015 Breakaway recommended By Carlisle:
Includes 2051 Lockable All Polymer Battery Case w/Flat Surface Mounting;
2023 Rechargeable Sealed 12v 5 Amp-hr Lead Acid Battery & Terminals; 2010 Breakaway Switch;
2024-07 DC-to-DC Heavy Duty Quick/Maintenance (Multi Stage) Battery Charger.
Breakaway Kit With Charger EquivalentTo Carlisle HBA-BA
TEKONSHA, W/CHARGER 5 AMP/HR Equivalent To Carlisle HBA-BA
Carlisle Recommends This Unit For Their Hydrastar Units. Both are Made by Bargman.

Free Delivery
