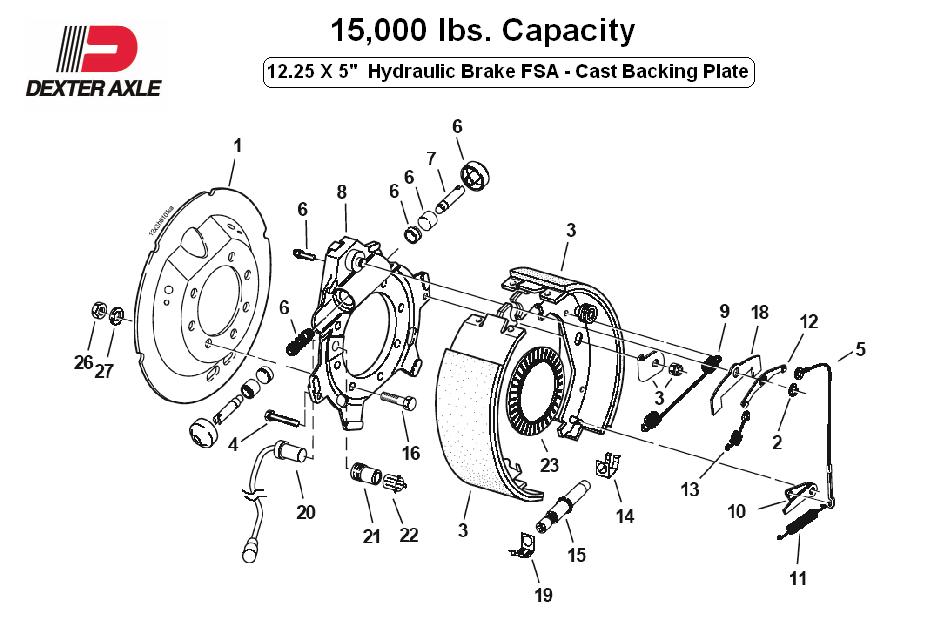

Part #                             Description  Item # Dexter #
27-454  LH Complete Brake Assembly Assembly 23-406
27-455  RH Complete Brake Assembly  Assembly 23-407
27-480-M Dust Cover 1 036-115-23
27-534-1 Retainer 2 069-053-00
27-412 LH Shoe & Lining Kit - For Cast Assembly 3 K71-169-00
27-413 RH Shoe & Lining Kit - For Cast Assembly 3 K71-170-00
27-529-2 Shoe Hold-Down Screw 4 007-113-00
27-523-3 Adjuster Cable 5 071-462-00

27-488 Wheel Cylinder Kit 6 K71-082-00
  Kit contains:
  Cylinder Spring 6 046-129-00
  Cylinder Boot 6 054-032-00
  Cylinder Piston 6 054-030-00
  Cylinder Cup 6 054-087-00
27-489-2 Bleeder Screw 6 054-035-00

27-489 Cylinder Push Rod 7 054-033-00
  Spider Assembly 8 036-063-04
27-515 Retractor Spring 9 046-087-00
27-524-1 LH Adjuster Lever 10 071-464-00
27-525-1 RH Adjuster Lever 10 071-463-00
27-526-1 LH Adjuster Lever Spring 11 046-135-00
27-527-1 RH Adjuster Lever Spring 11 046-134-00
27-489-1 Cable Attachment Bracket FSA 12 071-456-00
27-489-5 Extension Spring 13  046-131-01
27-522-2 Adjuster Clip (barrel end) 14 046-133-00
27-520-1 LH Adjuster Assembly 15 048-019-00
27-521-1 RH Adjuster Assembly 15 048-020-00
27-062-7 Brake Mounting Bolt 16 007-116-00
27-489-1 Piston Stop 18 034-062-00
27-522-1 Adjuster Clip (thread end) 19 046-132-00
22-491 ABS Sensor (straight) 20 097-004-00
22-495 ABS Sensor Mounting Block 21 024-204-00
22-492 ABS Sensor Retaining Clip 22 097-002-00
22-499 ABS Tone Ring in Drum 23 024-203-00
27-062-1 Brake Mounting Nut 26 26 006-017-00
27-066 Lockwasher 27 005-008-00
